Create a DropDown Menu in Swift

Complete guide to Create Drop Down Menu in Swift

Create DropDown menu is not a provided functionality in iOS application development, we are dependent on UIPicker or AlertSheet which. doesn’t look like Dropdown Menu or we need to use the third-party library for this functionality.

In this tutorial, we are going to learn about how we can create a Dropdown menu in Swift.

If you want to watch the video tutorial of this article, here you go:

DropDown list in Swift for iOS

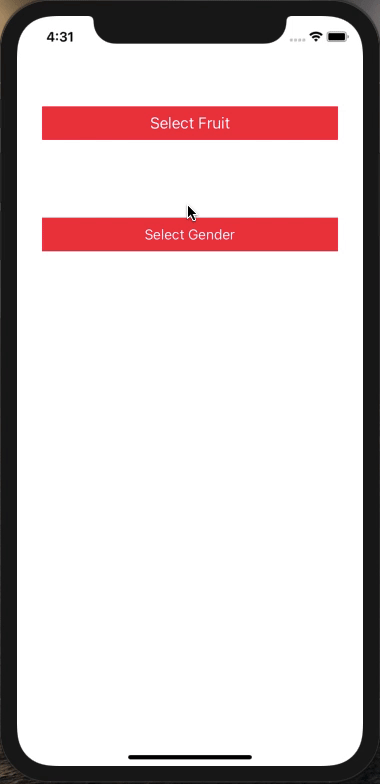

Final Output:

Final Output

1. Create a New Swift Project

Open Xcode, Select Single View Application and click on next and give a proper name to the project and make sure to select the user interface should be Swift, and create the project.

Create Project

2. Create Basic UI

First, we need to create the basic UI. we need to take the button on the Storyboard and create an IBOutlet and IBAction of that button on the ViewController.swift class.

Designed ViewController

3. Adding UITableView and Transparent View

Now we will create an UITableView and Transparent view which will show when the user taps on any of the UIButton.

UITableView and Transparent view are completely dynamic, so we need to create these views when the user taps on any of the buttons and removes them when the user selects an option or taps anywhere on the screen.

let transparentView = UIView()
let tableView = UITableView()

Now we need to create functions for Adding and Removing this UITableView and Transparent view on the screen. UITableview will create according to the screen size so we need to do some kind of a calculation to find the size of UITableview.

For Adding transparent view and UITableView add the below method in the ViewController.swift file.

func addTransparentView(frames: CGRect) {
         let window = UIApplication.shared.keyWindow
         transparentView.frame = window?.frame ?? self.view.frame
         self.view.addSubview(transparentView)

         tableView.frame = CGRect(x: frames.origin.x, y:    frames.origin.y + frames.height, width: frames.width, height: 0)
         self.view.addSubview(tableView)
         tableView.layer.cornerRadius = 5

         transparentView.backgroundColor = UIColor.black.withAlphaComponent(0.9)
         tableView.reloadData()
         let tapgesture = UITapGestureRecognizer(target: self, action: #selector(removeTransparentView))
         transparentView.addGestureRecognizer(tapgesture)
         transparentView.alpha = 0
         UIView.animate(withDuration: 0.4, delay: 0.0, usingSpringWithDamping: 1.0, initialSpringVelocity: 1.0, options: .curveEaseInOut, animations: {
             self.transparentView.alpha = 0.5
             self.tableView.frame = CGRect(x: frames.origin.x, y: frames.origin.y + frames.height + 5, width: frames.width, height: CGFloat(self.dataSource.count * 50))
         }, completion: nil)
     }

For Removing the transparent view and UITableview call the below method.

@objc func removeTransparentView() {
         let frames = selectedButton.frame
         UIView.animate(withDuration: 0.4, delay: 0.0,    usingSpringWithDamping: 1.0, initialSpringVelocity: 1.0, options: .curveEaseInOut, animations: {
             self.transparentView.alpha = 0
             self.tableView.frame = CGRect(x: frames.origin.x, y: frames.origin.y + frames.height, width: frames.width, height: 0)
         }, completion: nil)
     }

4. Changing the Frames and Data Source

Now, we need to show Tableview and Transparent view with the click of a button. With different buttons, we need to show different options on the Tableview.

Declare Variable:

var selectedButton = UIButton()
var dataSource = [String]()

Actions of the buttons which we have added on the ViewController on the storyboard.

@IBAction func onClickSelectFruit(_ sender: Any) {
    dataSource = ["Apple", "Mango", "Orange"]
    selectedButton = btnSelectFruit
    addTransparentView(frames: btnSelectFruit.frame)
}

@IBAction func onClickSelectGender(_ sender: Any) {
    dataSource = ["Male", "Female"]
    selectedButton = btnSelectGender
    addTransparentView(frames: btnSelectGender.frame)
}

5. Updating selected value & Removing View

When a user clicks any option of the table view, its delegate method gets called and updates the button title, and removes the transparent view.

func tableView(_ tableView: UITableView, didSelectRowAt indexPath: IndexPath) {
         selectedButton.setTitle(dataSource[indexPath.row], for:  .normal)
         removeTransparentView()
     }

Some of the actions still need to add to the ViewController.swift file which you can check on the project.

You can download the complete source code from the Letcreateanapp.com website.

If you like this tutorial please give it a clap and if you want any help let me know in the comment section.

Stay tuned, there is way more to come! follow me on Youtube, Instagram, Twitter. So you don’t miss out on all future Articles and Video tutorials.

I am delighted that you read my article! If you have any suggestions do let me know! I’d love to hear from you. 😊

Happy Coding!!
